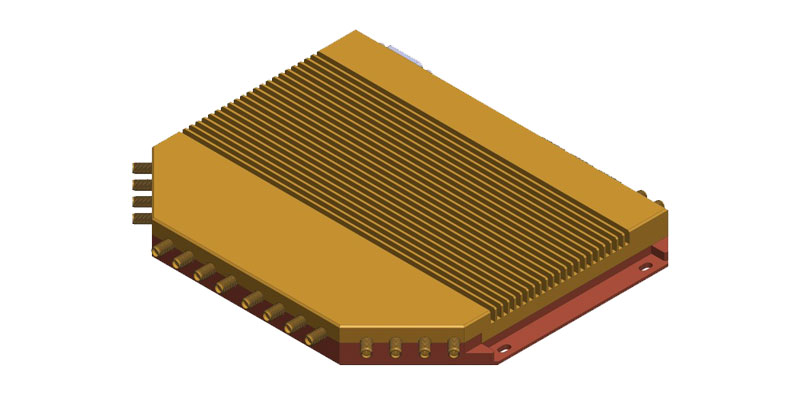

Features:

DIGITALINTERFACE
1. FPGA Xilinx ZynqUltraScale+ RFSoC
2. Operating Voltage +12V DC Input
3. Power Consumption 60Watt
4. Memory Interface(PS)
  • 8GB DDR4 SDRAM
  • 2GB QSPI Flash Memory
  • 64GB eMMC Flash Memory
5. Memory Interface(PL)
  • 4GB DDR4 SDRAM
  • 1GB NOR Flash Memory
6. ERT Interface 1310nm x1 RIO ERT SMF Transceiver
7. ERT Interface 850nm x1 RIO ERT MMF Transceiver
8. 1GEthernet x3 RJ45
9. 10G Copper Ethernet x1 ERT SMF Transceiver
10. RS232 x1
11. RS422 serial x2
12. GPS Antenna Input x2 SMA Connectors
13. TTL Control lines TOTAL 32 TTL Control lines connected to 51 pin uD connector
  • 16 TX lines
  • 12 High Current TX lines
  • 4 RX lines
14. RS 422 Differential lines Total 4 pairs connected to 51 pin uD connector
  • x2 TX pairs
  • x2 RX pairs
15. Audio codec Interface 1 channels * 3 Audiolines
RF INTERFACE
16. ADC Input 8 No’s of SMA Connector
Frequency Range 1MHz-6GHz
Sampling Frequency 1-5GSPS
Signal Powers -65 to 0 dBm
Amplitude matching across frequency 1 MHz- 6 GHz (within+/-0.5dB) for each ADC
17. DAC Output 8No’s of SMA Connectors
Frequency Range 1 MHz - 6GHz
Sampling Frequency 1-7 GSPS
Signal Powers -45 to 5dBm.
Amplitude matching across frequency 1 MHz - 6 GHz (within +/-1dB) for each DAC
Phase noise < -160 dBc/Hz @1 KHz for each DAC
18. External reference Clock 10MHz
19. Mechanical dimensions 187.5 x 244 x 24.5
