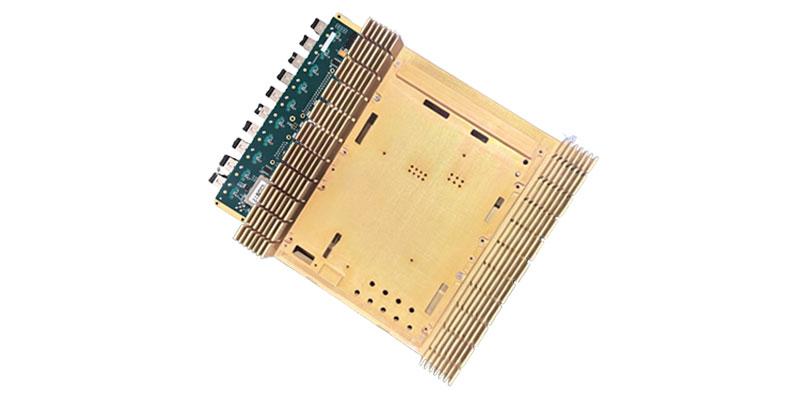

| DIGITAL RECEIVER Module (ZynqUltraScale+RFSoC) |
| 1. |
ADC Interface |
8 Channels upto to 5Gsps |
| 2. |
DAC Interface |
1 Channel upto to 9Gsps |
| 3. |
Memory Interfaces |
- 8GB DDR4 dedicated to PS
- 8GB DDR4 dedicated to PL
- 512MB QSPI FLASH
- 64GB eMMC NAND FLASH
- 1TB SATA SSD
- 1GB NOR FLASH
- 2KB EEPROM
|
| 4. |
High Speed I/O Interfaces |
- x2 10/100/1000 Mbps RJ45 Ethernet Ports
- x1 Gigabit Ethernet over Fiber
- x1 850nm Optical Fiber
|
|
5. |
I/O Interfaces |
- x20 RS422 Receivers
- x20 RS422 Drivers
- x6 TTL Lines
- x2 RS232 ports
|
| 6. |
Clocks |
- On-board ADC/DAC Clock Synthesizer for Sampling
- On-board Clock Generation for all Memory & I/O interfaces
|
| PROCESSING Module (ZynqUltraScale+MPSoC) |
| 7. |
Memory Interfaces |
- 8GB DDR4 dedicated to PS
- 72MB QDRII+SRAM dedicated to PL
- 512MB QSPI FLASH
- 64GB eMMC NAND FLASH
|
| 8. |
High Speed I/O Interfaces |
- x2 10/100/1000 Mbps RJ45 Ethernet Ports
- x1 Gigabit Ethernet over Fiber
- x5 850nm Optical Fiber
- x1 1310nm Optical Fiber
|
| 9. |
I/O Interfaces |
- x12 RS422 Receivers
- x12 RS422 Drivers
- x4 TTL Lines
- x2 RS232 ports
- GPS Module
|
| 10. |
Monitoring |
- Temperature Sensor
- Voltage Sensor
- Current Sensor
|
| 11. |
Clocks |
On-board Clock Generation for all Memory & I/O interfaces |
| 12. |
Inter - Modules Communication |
- x16 GPIO Lines
- x6 RIO Lines
- x1 Gigabit Ethernet
|
| 13. |
Ethernet Switch |
5 Port Gigabit Ethernet Switch |
| 14. |
Operating Voltage |
+28V DC |
| 15. |
Power Consumption |
<100 Watt |
| 16. |
Thermal Mechanism |
Conduction Cooled |
| 17. |
Weight |
<3Kgs |
| 18. |
Dimensions |
240(W) x 270(L) x 40mm(H) |
