Dual Band Communication Receiver Board

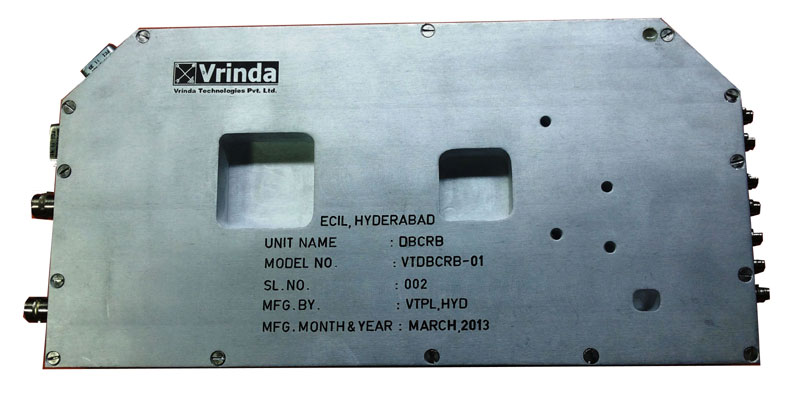

Dual Band Communication Receiver Board receives data at IF (70±2.5MHz) over four ADC channels and process the data using Virtex-6 FPGA and Power QUICC II Processor. The processor is configured to transmit and receive data over serial and Ethernet ports. This board also with dual channels generating the IF (70±2.5MHz) to external world. This is mostly used in seeker navigation and dual band communication.
Features:
| Processor | PowerQUICC II Pro Processor (MPC8280) Operating at (166-450MHz) |
| FPGA | Virtex-6 XC6VLX240t-11FFG784C. |
| Memory |
128MB of SDRAM memory with 64-bit data bus width. 16MB of Flash memory for Booting Device 4MB of DPRAM memory support 512Mb I2C EEPROM for board and user configuration. |
| Communication Interfaces |
One Fast Ethernet 100Base-T/10Base-T Two isolated RS232 serial ports. One RS485 Port. |
| I/O | 32LVDS, 26 LVTTL |
| ADC |
Sampling Frequency : 250MSPS (Maximum) Number of Channels : 4 No’s Resolution : 14 bit. |
| DAC |
Clock Frequency : 1GSPS Number of channels : 2 No’s Resolution : 16-bit. |
| Other Interfaces |
LED indications for board status. JTAG port for debug. MIL–STD-1553 |
| Dimensions | 227x107mm |
