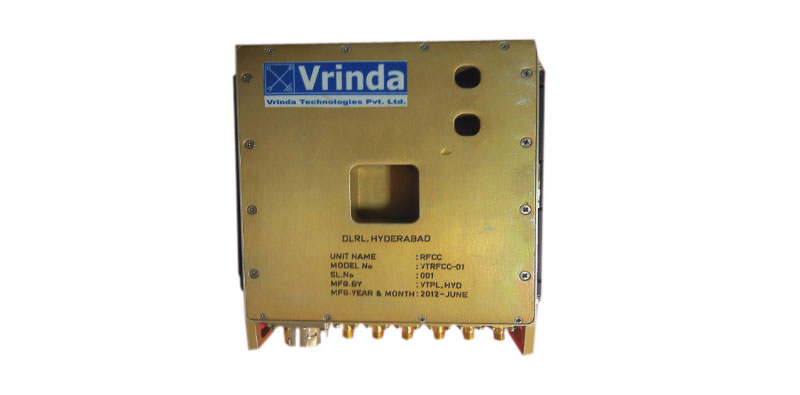

RF Controller Card
RF Controller Card, based on Vertex 5 FPGA is used to select one of the five video inputs and compare it with the reference signal generated by DAC. Based on the comparator output, the application algorithm is developed. It has memory and communication interfaces to support the application. The Micro Blaze, as a soft-core processor, is implemented entirely in the general-purpose memory and logic fabric of Xilinx FPGA and is used to interface all the memory and communication interfaces.
Features:
| FPGA | Virtex-5XC5VLX50T-2FFG1136I |
| Memory | SPI Flash (32Mb) Parallel Flash(32 MB/16bits) SDRAM(32MB) EEPROM(8Kb) |
| Communication Interfaces | One Ethernet 1000Base-T/100Base-T/10Base-T One RS232 serial ports Five RS422 drivers and Receivers |
| LVTTL buffers/ TTL Transceiver | 112 lines |
| Analog MUX | Multiplexer type: 8×1 |
| Quad DAC | Number of channels : 4 No’s |
| Other Interfaces | Oscillator(100 MHz,±10ppm) Quad comparator Video driver Configuration PROM(32 Mb) |
| Dimensions | 50 mm × 150mm × 40mm |
| Environmental | ESS & QT qualified as per MILSTD 810E |
